| Item | Ref. | Description | |

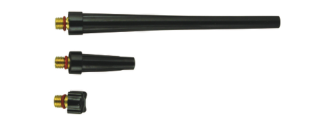

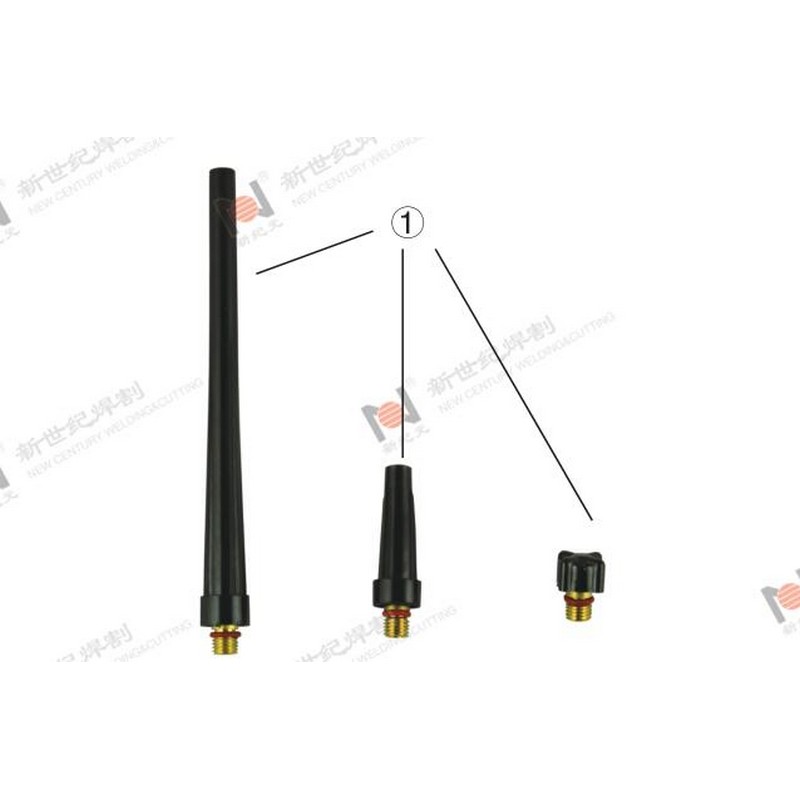

| 1 |  | 41V24 | Back cap long |
| 41V35 | Back cap medium | ||
| 41 V33 | Back cap short | ||

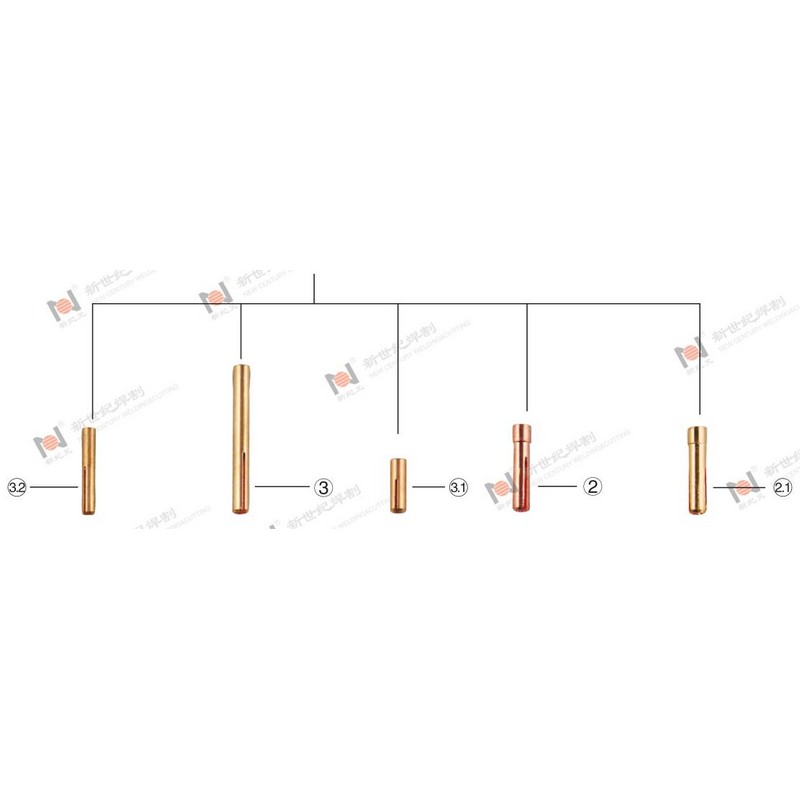

| 2 |  | 1 3N20 | ColletΦ0. 5 mmx020" |
| 13N21 | ColletΦ1 .0 mmx040" | ||
| 13N22 | ColletΦ1.6mmx1/1 6" | ||
| 1 3N23M | ColletΦ2.0 mmx5/64" | ||
| 1 3N23 | ColletΦ2.4 mmx3/32" | ||
| 13N24 | ColletΦ3.2 mmx1/8" | ||
| 2.1 |  | 13N22 | ColletΦ1.6 mmx1/16" |
| 13N23 | ColletΦ2.4 mmx3/32" | ||
| 13N24 | ColletΦ3.2mmx1/8" | ||
| 3 |  | 13N2OL | ColletΦ0. 5 mmx020" |
| 13N21L | ColletΦ1 .0 mmx040" | ||
| 13N22L | ColletΦ1. 6mmx1/16" | ||
| 1 3N23ML | ColletΦ2.0 mmx5/64" | ||
| 13N23L | ColletΦ2.4 mmx3/32" | ||
| 13N24L | ColletΦ3.2 mmx1/8" | ||
| 3.1 |  | ColletΦ1.0/1.6/2.0/2. 4mmx15.5mm | |
| 3.2 |  | ColletΦ1.0/1.6/2.0/2. 4mmx29mm | |

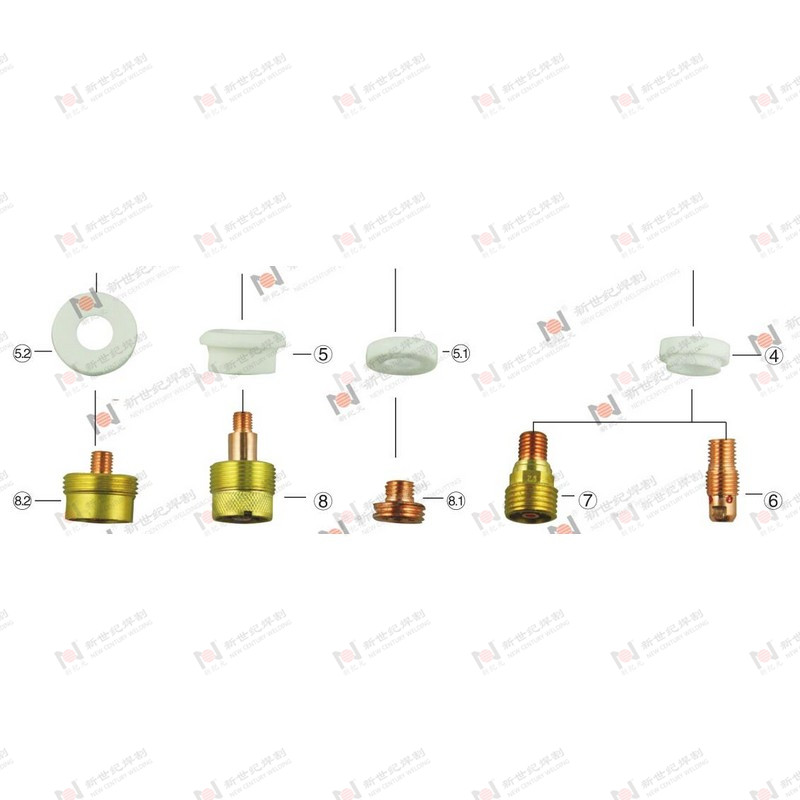

| 4 |  | 598882 | Cup gasket |
| 5 |  | 54N6320 | Jumbo cup insulator |
| 5.1 |  | 598882- 1 | Cup gasket |
| 5.2 |  | 54N6320-1 | Jumbo cup insulator |
| 6 |  | 13N25 | Collet bodyΦ0.5 mmx020" |
| 13N26 | Collet bodyΦ1 .0 mmx040" | ||
| 13N27 | Collet bodyΦ1 .6mmx1/16" | ||
| 1 3N27M | Collet bodyΦ2.0 mmx5/64 " | ||
| 1 3N28 | Collet bodyΦ2.4 mmx3/32" | ||
| 13N29 | Collet bodyΦ3.2 mmx1/8" | ||
| 7 |  | 45V41 | Collet body gas lens Φ0.5 mmx020" |
| 45V42 | Collet body gas lens Φ1.0 mmx040" | ||
| 45V43 | Collet body gas lens Φ1 .6mmx1/16" | ||
| 45 V43M | Collet body gas lens Φ2.0 mmx5/64" | ||
| 45V44 | Collet body gas lens Φ2.4 mmx3/32" | ||
| 45V45 | Collet body gas lens Φ3.2 mmx1/8" | ||
| 8 |  | 45V020S | Collet body jumboΦ1.0 mmx040" |
| 45V11 6S | Collet body jumboΦ1.6mmx1/16" | ||
| 45V64S | Collet body jumboΦ2.4 mmx3/32" | ||
| 995795S | Collet body jumboΦ3.2 mmx1/8" | ||
| 45V63S | Collet body jumboΦ4.0 mmx5/32" | ||
| 8.1 |  | Collet body gas lens small | |
| 8.2 |  | Collet Body gas lens super short | |

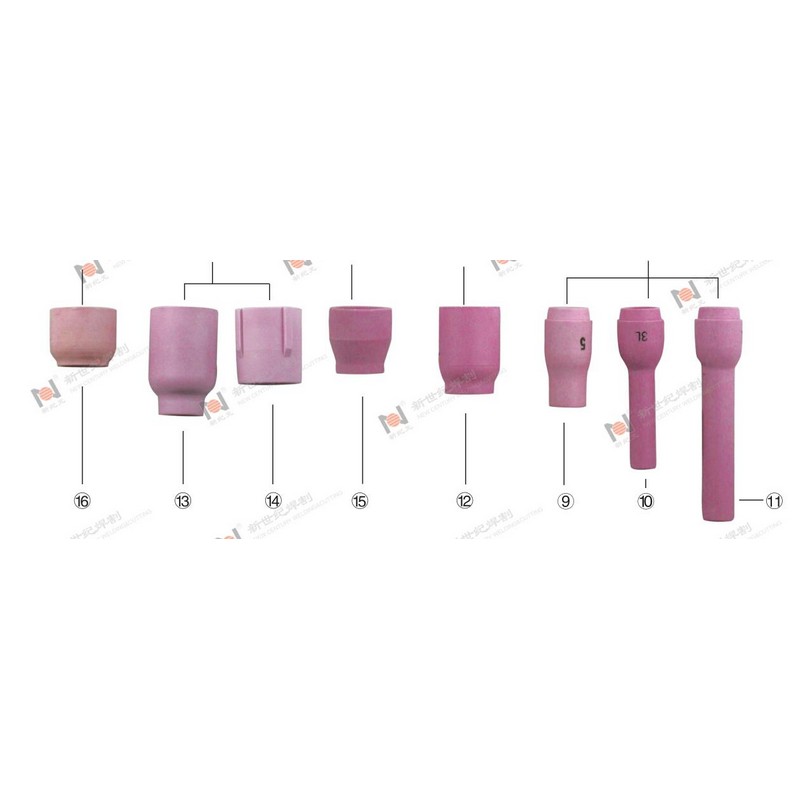

| 9 |  | 13N08 | Alumina nozzlel.D.6.5 mmx1/4"-size 4 |
| 13N09 | Alumina nozzlel.D.8.0 mmx5/16"-size 5 | ||
| 13N10 | Alumina nozzlel.D.9.5 mmx3/8"-size 6 | ||
| 13N11 | Alumina nozzlel.D.11.0 mmx7/16"-size 7 | ||
| 13N12 | Alumina nozzlel.D.12.5 mmx1/2"-size 8 | ||
| 13N13 | Alumina nozzlel.D.16.0 mmx5/8"-size 10 | ||
| 10 |  | 796F70 | Alumina nozzlel.D.4.0 mmx1/6"-size 3 |
| 796F71 | Alumina nozzlel.D.6.5 mmx1/4"-size 4 | ||
| 796F72 | Alumina nozzlel.D.8.0 mmx5/16"-size 5 | ||
| 796F73 | Alumina nozzlel.D.9.5 mmx3/8"-size 6 | ||
| 11 |  | 796F74 | Alumina nozzle LD.4.0 mm.x1/6"-size 3 |
| 796F75 | Alumina nozzle LD.6.5 mm.x1/4"-size 4 | ||
| 796F76 | Alumina nozzle LD.8.0 mm.x5/1 6"-size 5 | ||
| 796F77 | Alumina nozzle LD.9.5 mm.x3/8"-size 6 | ||
| 12 |  | 53N58 | Alumina nozzle gas lens LD.6.5 mm.x1/4"-size 4 |
| 53N59 | Alumina nozzle gas lens LD.8.0 mm.x5/1 6"-size 5 | ||
| 53N60 | Alumina nozzle gas lens LD.9.5 mm.x3/8"-size 6 | ||
| 53N61 | Alumina nozzle gas lens LD.11.0 mm.x7/16"-size7 | ||
| 53N61S | Alumina nozzle gas lens LD.12.5 mm.x1/2"-size 8 | ||
| 13 |  | 57N75 | Alumina nozzle Jumbo LD.9.5 mm.x3/8"-size 6 |
| 57N74 | Alumina nozzle Jumbo LD.12.5 mm.x1/2"-size 8 | ||
| 53N88 | Alumina nozzle Jumbo I.D.16.0 mm.x5/8"-size 10 | ||
| 53N87 | Alumina nozzle Jumbo LD.19.5 mm.x3/4"-size 12 | ||
| 14 |  | 53N89 | Alumina nozzle Jumbo I.D.24.0 mm.xl .0"-size 15 |
| 15 |  | 15KN14 | Alumina nozzle |
| 15KN15 | Alumina nozzle | ||
| 16 |  | 53N90 | Alumina nozzle Jumbo |

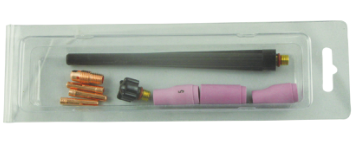

| 17 |  | Consumable kit | |
| Consumable kit withΦ1.6WC orΦ2. 4WC | |||
